MAH helicopter blades scale

MAH blades for RC scale helicopters with the carrier (asymmetrical) profile are made to order only.
To order, you must select the number of the blade from the table, indicate the desired length, rotation, quantity of blades in the set.

Mail for order: mahcfproducts@gmail.com

Shipping: Worldwide
Payment: PayPal

you can find me on ebay

you will get ready to use, for mounted on a helicopter model, balanced blades!!!

• Type 22.75
• length: max* 1120 mm
• blade root: 22 mm
• hole: 6 mm
• blade chord: 75 mm
• profile thickness: 7.6 mm
• weight: ca. 480 g (for 950 mm), 550 g (for 1120 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left or right (CCW or CW)
• airfoil: NACA 2308

* - you need a blade shorter, write the length and rotation you need

• Type 22.75.1
• length: max* 1120 mm
• blade root: 22 mm
• hole: 6 mm
• blade chord: 75 mm
• profile thickness: 11 mm
• weight: ca. 470 g (for 1045 mm), 500 g (for 1120 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left or right (CCW or CW)
• airfoil: NACA 8-H-12

* - you need a blade shorter, write the length and rotation you need

• Type 18.64
• length: max* 1120 mm
• blade root: 18 mm
• hole: 5 mm
• blade chord: 64 mm
• profile thickness: 8.8 mm
• weight: ca. 430 g (for 915 mm), 470 g (for 1015 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)
• airfoil: NACA 8-H-12

* - you need a blade shorter, write the length you need

• Type 14.74
• length: max* 900 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 74 mm
• profile thickness: 11 mm
• weight: ca. 290 g (for 875 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left or right (CCW or CW)

* - you need a blade shorter, write the length and rotation you need

• Type 14.73
• length: 800 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 73 mm
• profile thickness: 11.5 mm
• weight: ca. 250 g
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)

• Type 14.71
• length: max* 815 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 71 mm
• profile thickness: 8.8 mm
• weight: ca. 260 g (for 815 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)

* - you need a blade shorter, write the length you need

• Type 14.67
• length: 800 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 67 mm
• profile thickness: 8.5 mm
• weight: ca. 250 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric

• Type 14.62
• length: max* 725 mm
• blade root: 14 mm
• hole: 4 mm
• blade chord: 62 mm
• profile thickness: 8 mm
• weight: ca. 210 g (for 725 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)

* - you need a blade shorter, write the length you need

• Type 14.59
• length: max* 900 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 59 mm
• profile thickness: 8.5 mm
• weight: ca. 225 g (for 895 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: symmetrical (CCW or CW)

* - you need a blade shorter, write the length you need

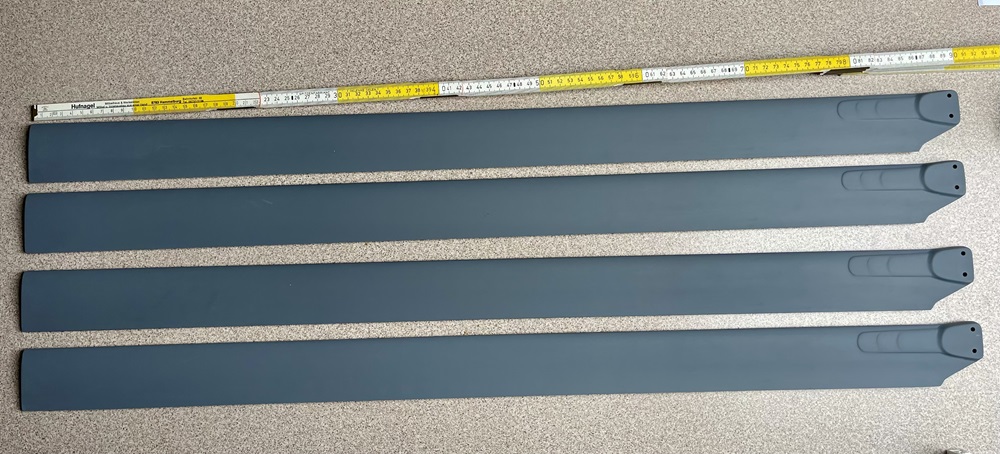

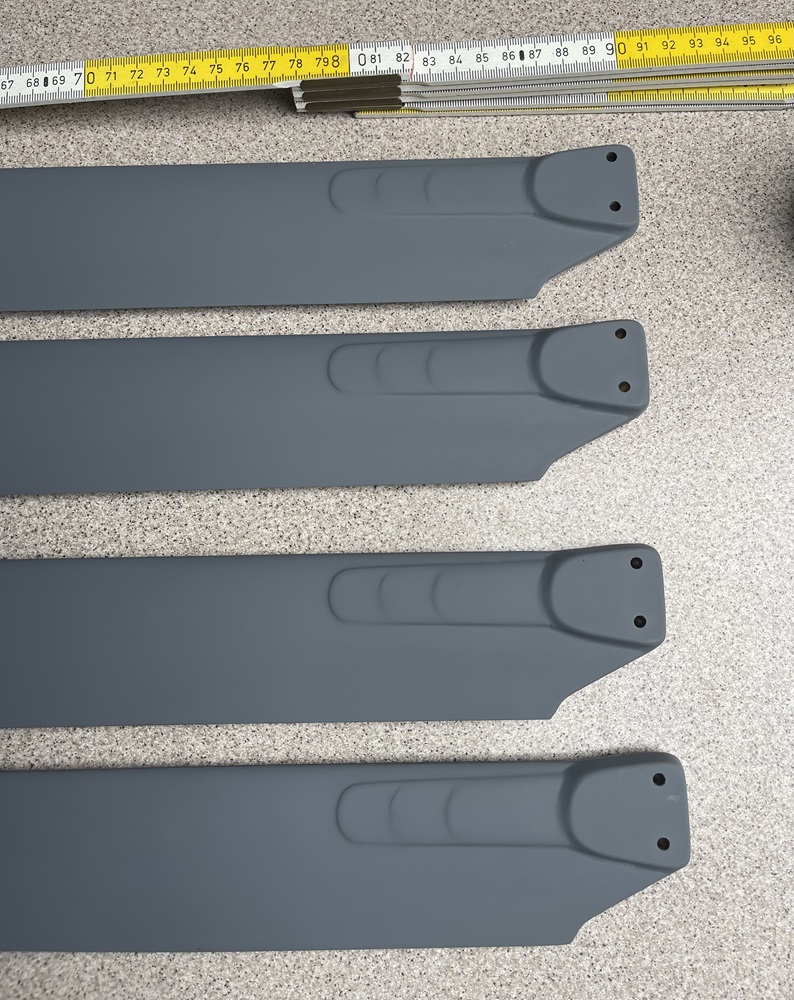

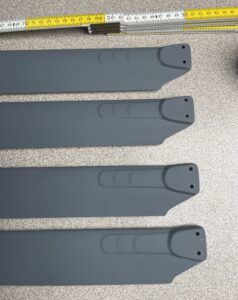

• Type 14.58
• length: max* 900 mm
• blade root: 14 mm
• hole: 4 mm x 2
• blade chord: 58 mm
• profile thickness: 8.5 mm
• weight: ca. 250 g (for 900 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: symmetrical (CCW or CW)

* - you need a blade shorter, write the length you need

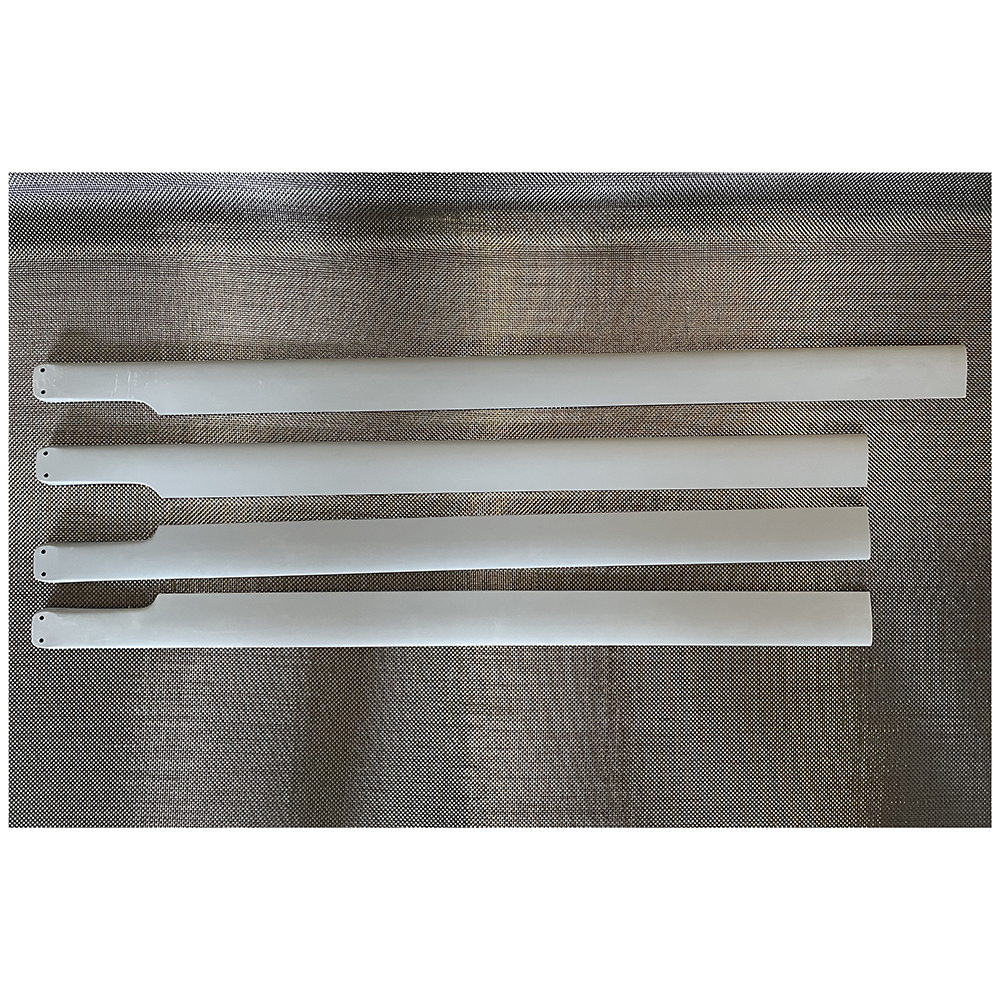

• Type 14.51
• length: max* 890 mm
• blade root: 14 mm
• hole: 4 mm x 2
• blade chord: 51 mm
• profile thickness: 6.5 mm
• weight: ca. 175 g (for 765 mm), 195 g (for 865 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left or right (CCW or CW)

* - you need a blade shorter, write the length and rotation you need

• Type 14.46
• length: max* 890 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 46 mm
• profile thickness: 7 mm
• weight: ca. 250 g (for 890 mm)
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)

* - you need a blade shorter, write the length you need

• Type 14.43
• length: max* 870 mm
• blade root: 14 mm
• hole: 5 mm
• blade chord: 43 mm
• profile thickness: 7 mm
• weight: ca. 240 g (for 870mm)
• material: carbon fiber
• color: anthracite matt
• rotation: symmetrical (CCW or CW)

* - you need a blade shorter, write the length you need

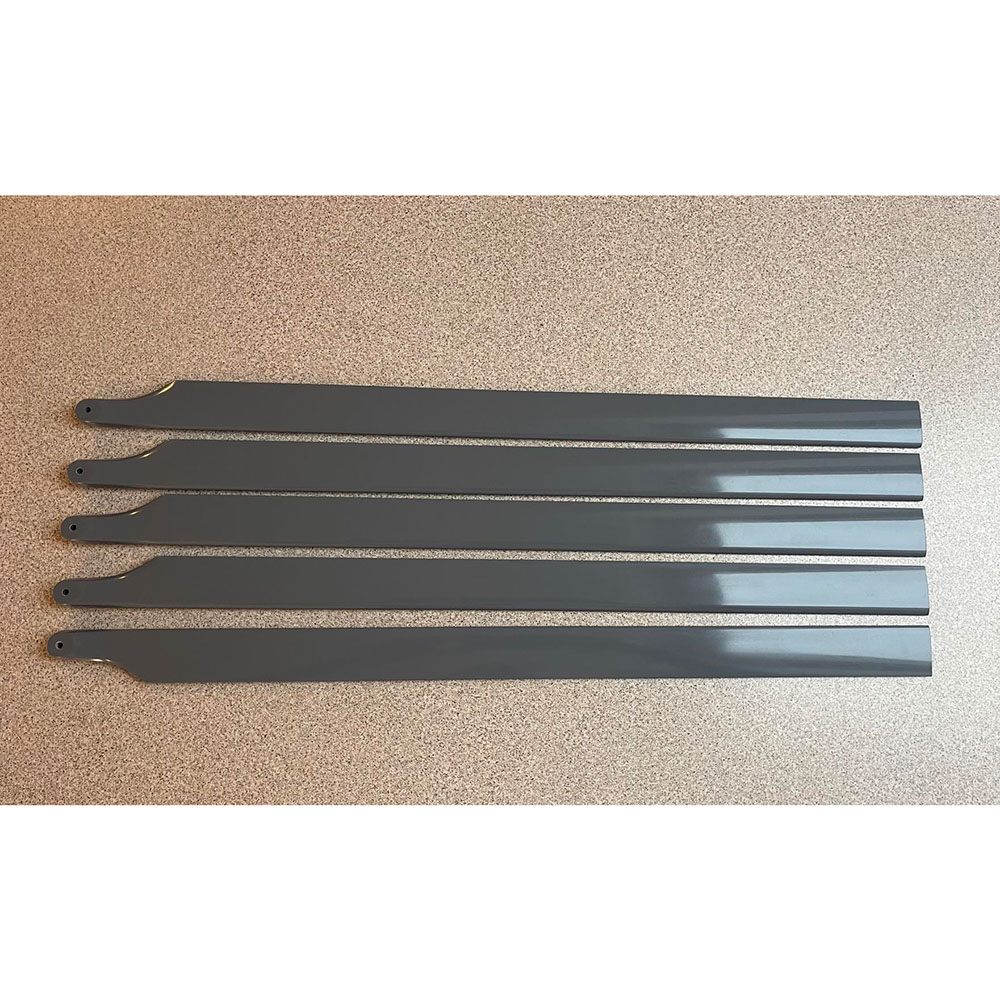

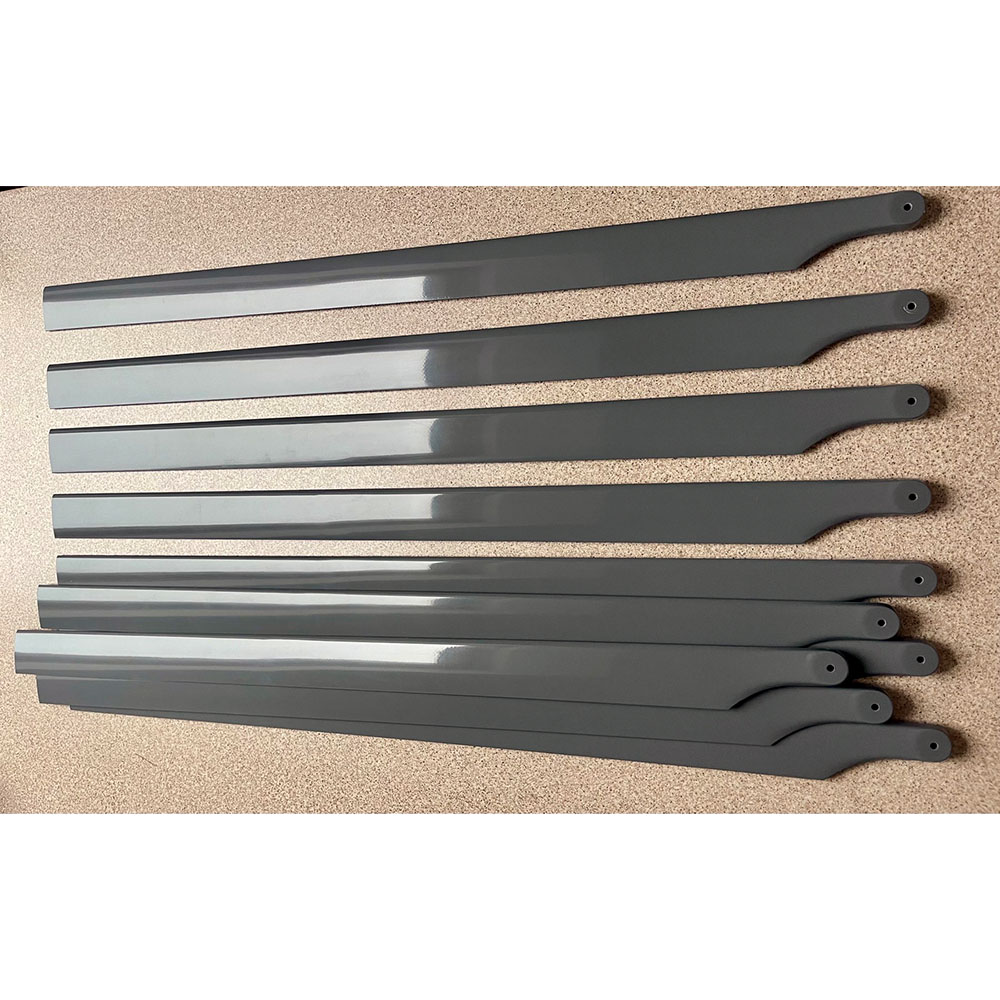

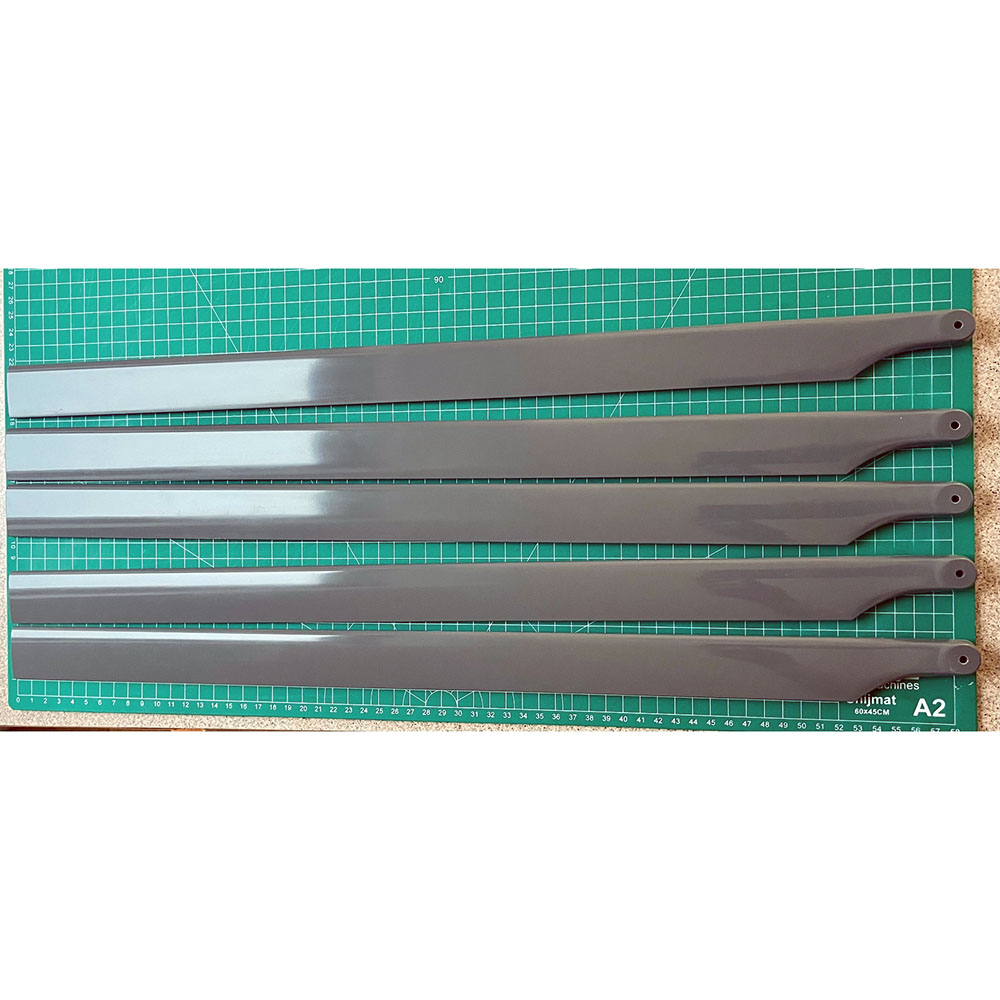

• Type 14.39
• length: max* 720 mm
• blade root: 14 mm
• hole: 4 mm
• blade chord: 39 mm
• profile thickness: 5,2 mm
• weight: ca. 120 g (for 720 mm)
• material: carbon fiber
• color: anthracite
• rotation: right (CW)

* - you need a blade shorter, write the length you need

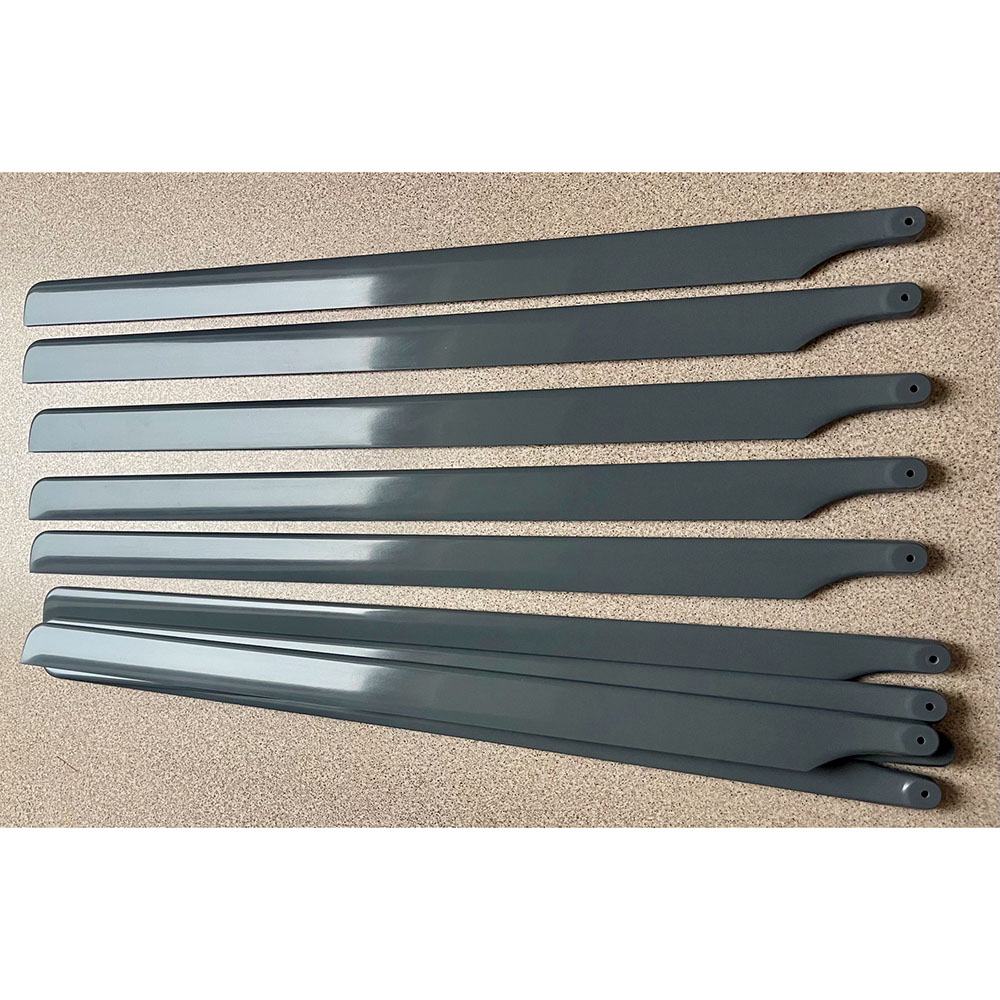

• Type 14.34
• length: max* 620 mm
• blade root: 14 mm
• hole: 4 mm
• blade chord: 34 mm
• profile thickness: 5 mm
• weight: ca. 100 g (for 620 mm)
• material: carbon fiber
• color: anthracite
• rotation: right (CW)

* - you need a blade shorter, write the length you need

• Type 11.64
• length: 600 mm
• blade root: 11 mm
• hole: 4 mm
• blade chord: 64 mm
• profile thickness: 10 mm
• weight: ca. 150 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric

• Type 11.44
• length: 600 mm
• blade root: 11 mm
• hole: 4 mm
• blade chord: 44 mm
• profile thickness: 7 mm
• weight: ca. 130 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric

• Type 10.44
• length: 530 mm
• blade root: 10 mm
• hole: 3 mm
• blade chord: 44 mm
• profile thickness: 6.8 mm
• weight: ca. 100 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric

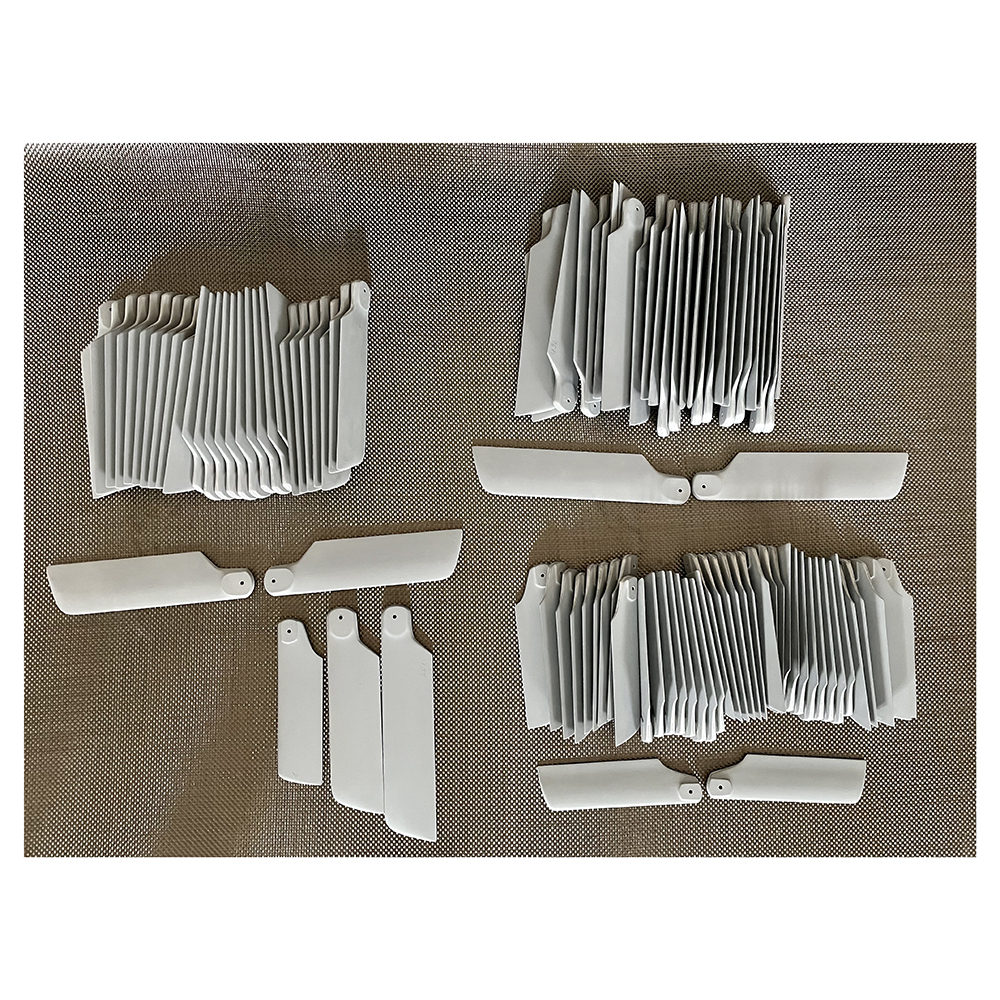

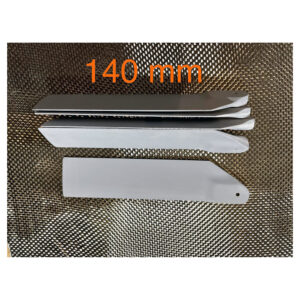

• Tail rotor blades
• length: 120 mm
• length: 130 mm

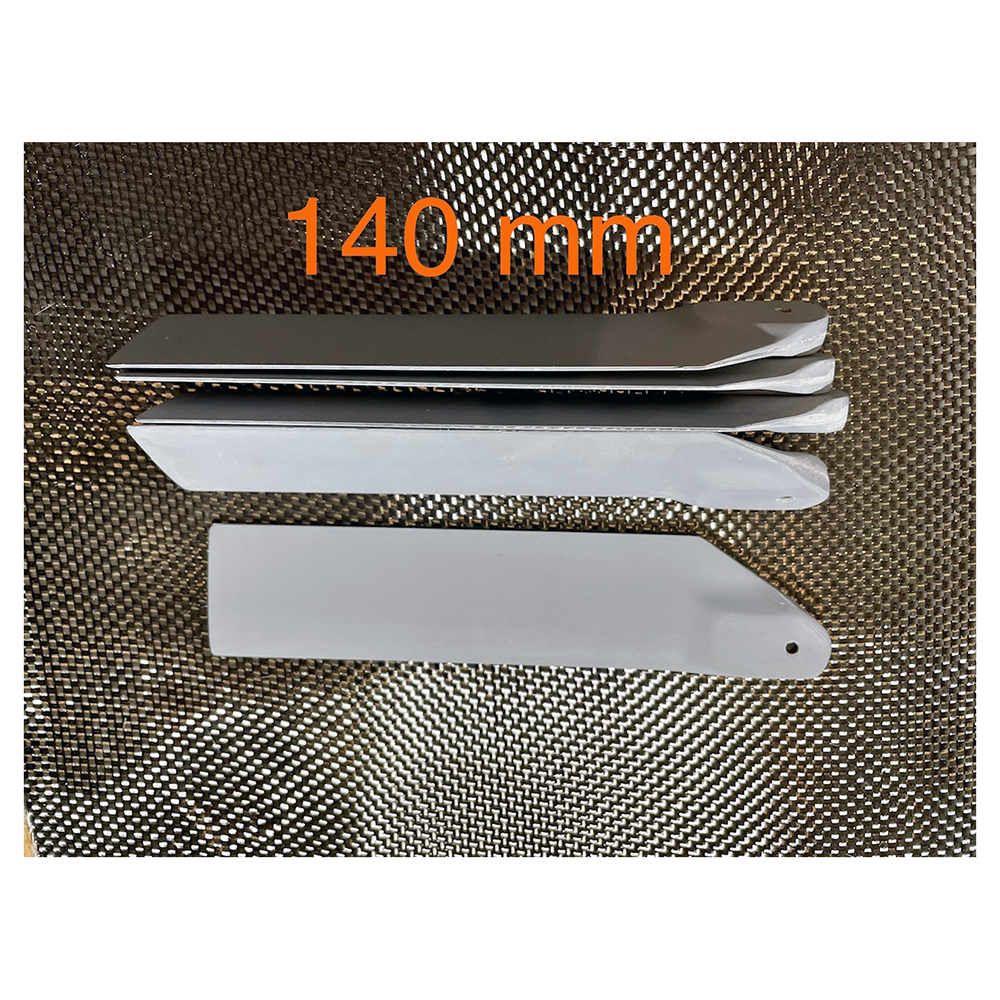

• length: 140 mm
• length: 156 mm
• length: 180 mm

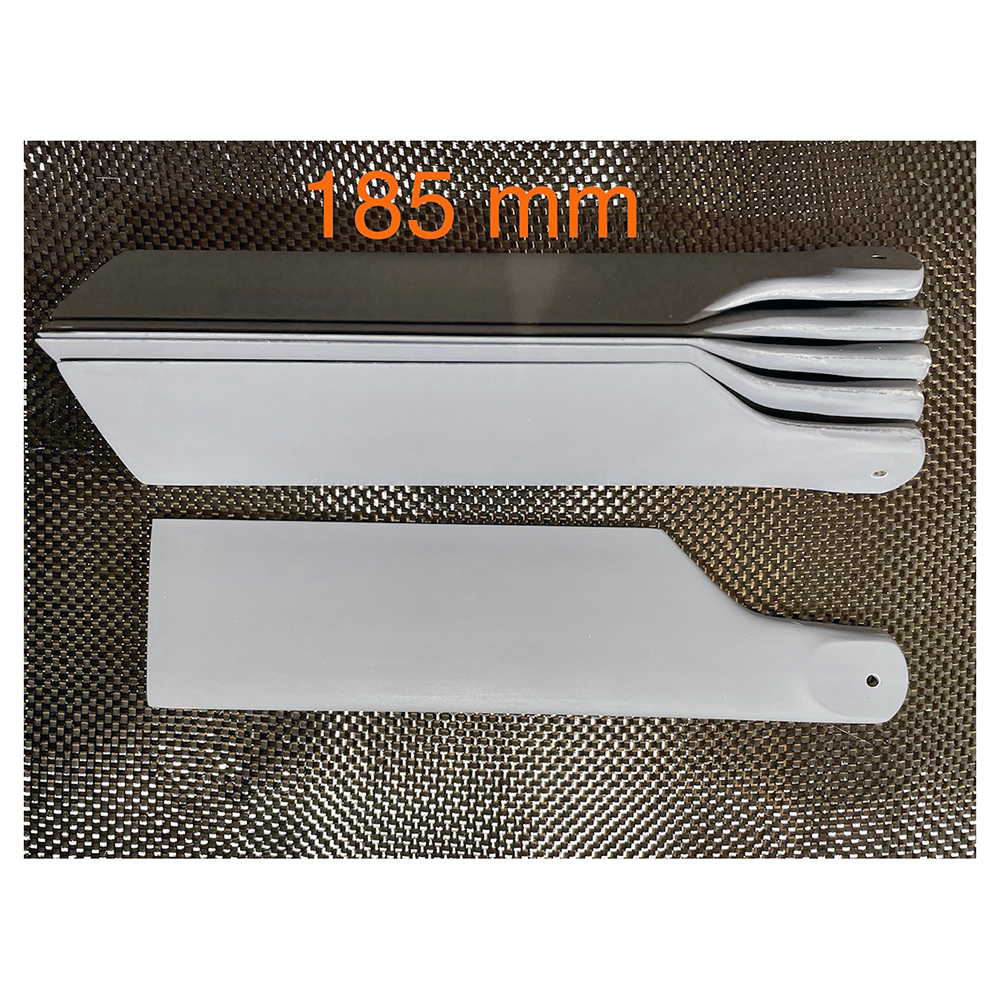

• length: 185 mm

ready to ship

• Type 18.64
• 4 blades set
• length: 915 mm
• blade root: 18 mm
• hole: 5 mm
• blade chord: 64 mm
• profile thickness: 8.8 mm
• weight: ca. 430 g
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)
• ready to ship

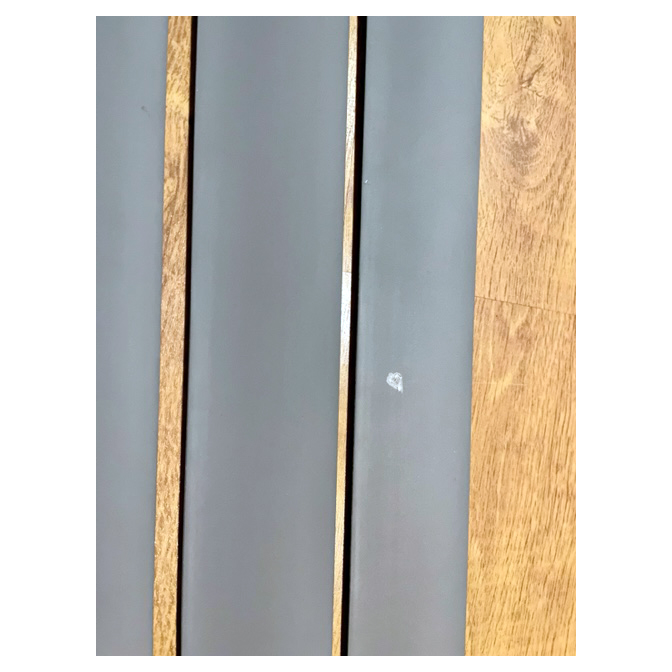

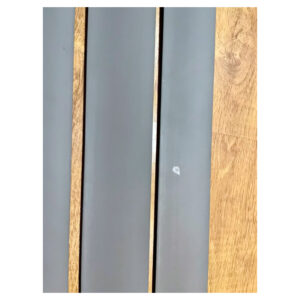

• have cosmetic defect

• Type 18.64
• 3 blades set
• length: 1015 mm
• blade root: 18 mm
• hole: 5 mm
• blade chord: 64 mm
• profile thickness: 8.8 mm
• weight: 392 g
• material: carbon fiber
• color: anthracite matt
• rotation: left (CCW)
• ready to ship

• Type 22.75.1
• 3 blades set
• length: 950 mm
• blade root: 22 mm
• hole: 6 mm
• blade chord: 75 mm
• profile thickness: 11 mm
• weight: ca. 450 g
• material: carbon fiber
• color: anthracite matt
• rotation: right (CW)
• airfoil: NACA 8-H-12

• Type 11.64
• 2 blades set
• length: 600 mm
• blade root: 11 mm
• hole: 4 mm
• blade chord: 64 mm
• profile thickness: 10 mm
• weight: ca. 150 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric

• Type 11.44
• 5 blades set
• length: 600 mm
• blade root: 11 mm
• hole: 4 mm
• blade chord: 44 mm
• profile thickness: 7 mm
• weight: ca. 130 g
• material: carbon fiber
• color: anthracite matt
• rotation: symmetric
